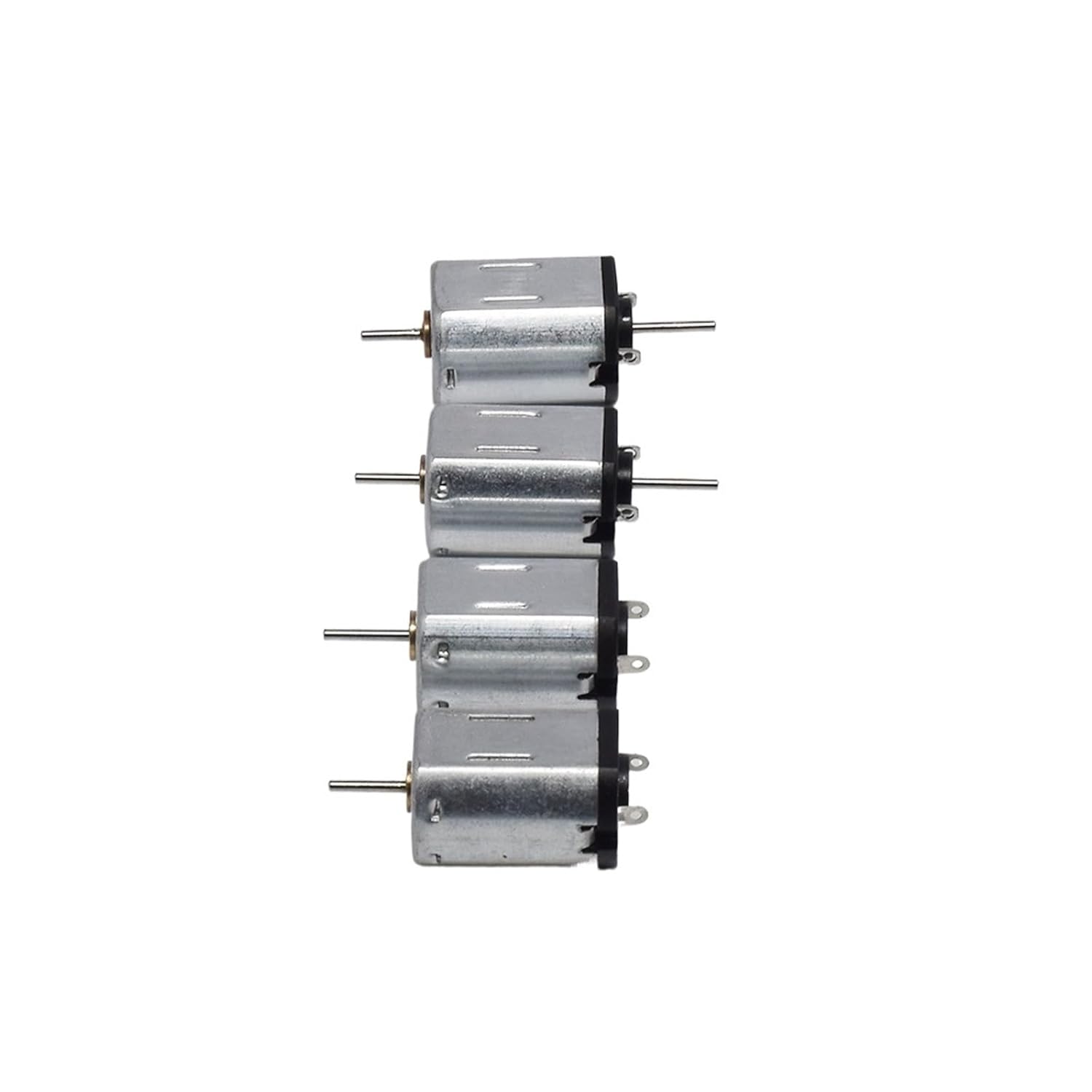

Micro 10mm*12mm N20 Motor DC 3V 3.7V 6V 9V 12V High Speed Single/Dual-Shaft Large DIY N-Scale Toy Car Electric Engine(A Motor Dual Shaft)

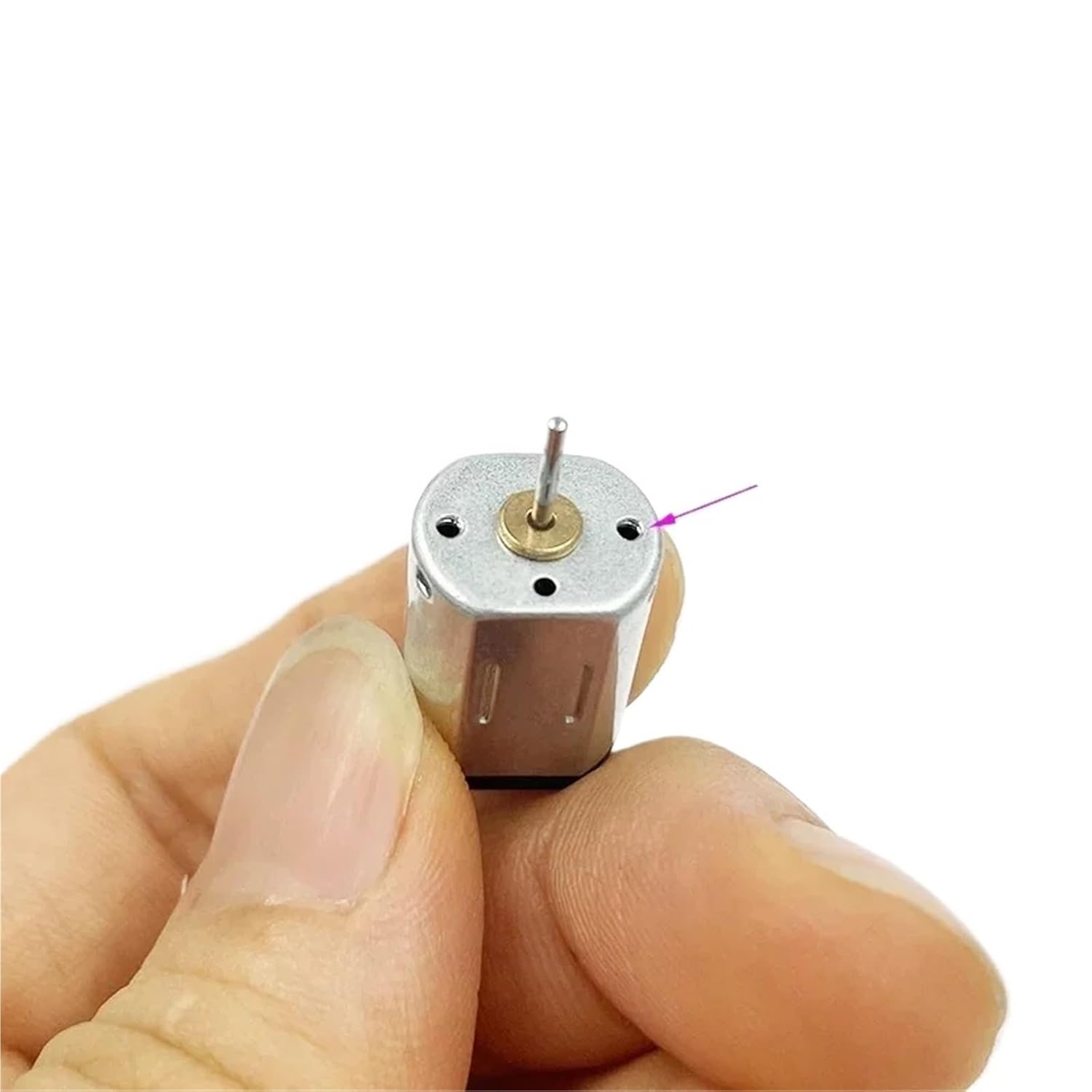

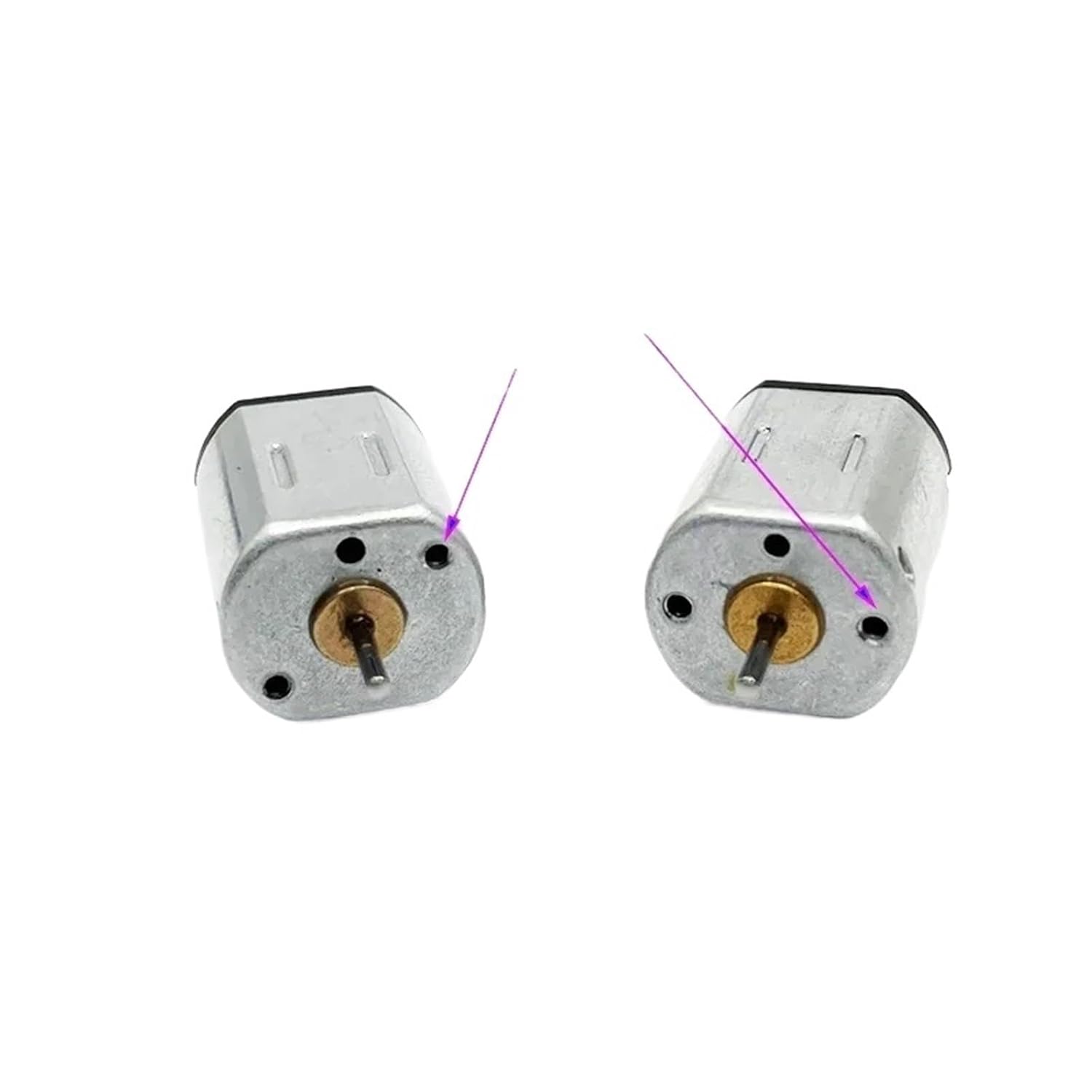

MotorsSpecification:Model A/ Model B ( Metal Brush Motor ) dual shaft. DC 6V-12VModel C/ Model D ( Carbon Brush Motor ) single shaft. DC 3V-6VNotes: The Model A and Model B difference is only the location of the installation holes.Model: N20 motorBody length: 15MM Body diameter: 12MM Motor height:10mm Shaft diameter: 1MM Shaft length:front 5.2mm, back 6.7mm back shaft [Voltage]: 3.0V-12VVoltage Speed (no load) Current 3.0V 4600rpm 15 ma 6V 10000 rpm 20ma 9V 15000rpm 25ma 12V 20000rpm 30maModel C ( Carbon Brush Motor )Model: FK-N20Motor size: 15.5mm*12mm*10mmOutput shaft diameter: 1.0mmOutput shaft length: 7.4mmWeight: 6gVoltage range: DC 3V-5VTest data:Voltage:3.0V No-load speed:23000RPM Current:230mAVoltage:5.0V No-load speed:38000RPM Current:340mAModel D ( Carbon Brush Motor )Model: FK-N20Motor size: 15.5mm*12mm*10mmOutput shaft diameter: 1.0mmOutput shaft length: 6.5mmWeight: 6gVoltage range: DC 3V-6VTest data:Voltage:3.0V No-load speed:20000RPM Current:150mAVoltage:3.7V No-load speed:25200RPM Current:170mAVoltage:5.0V No-load speed:34000RPM Current:180mAVoltage:6.0V No-load speed:40800RPM Current:200mAPackage:Motor x 1==========Hign-concerned Chemical : NoneModel Number : N20Construction : Permanent MagnetProtect Feature : NType : Micro MotorCommutation : BrushEfficiency : IE 1Origin : Mainland Certification : NoneModel : High Speed Mini DC MotorCountry/Region of Manufacture : Type : Five Pole Rotor Motor

• Motors
• Micro 10mm*12mm N20 Motor DC 3V 3.7V 6V 9V 12V High Speed Single/ Dual-shaft Large DIY N-scale Toy Car Electric Engine
