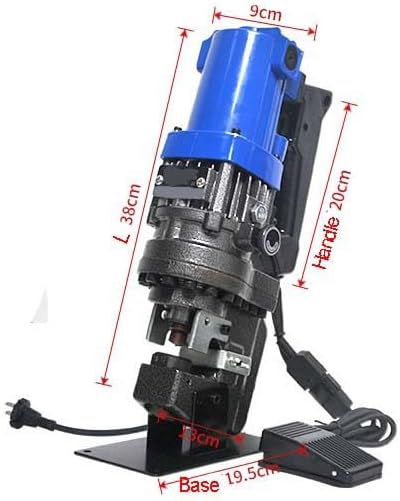

Hydraulic Punching Machine, 13Ton Iron/Steel Punch Tool with 5 Dies (6.5-20.5mm) for Angle Iron (4#-6.3#), 1300W Copper Motor & Foot Pedal

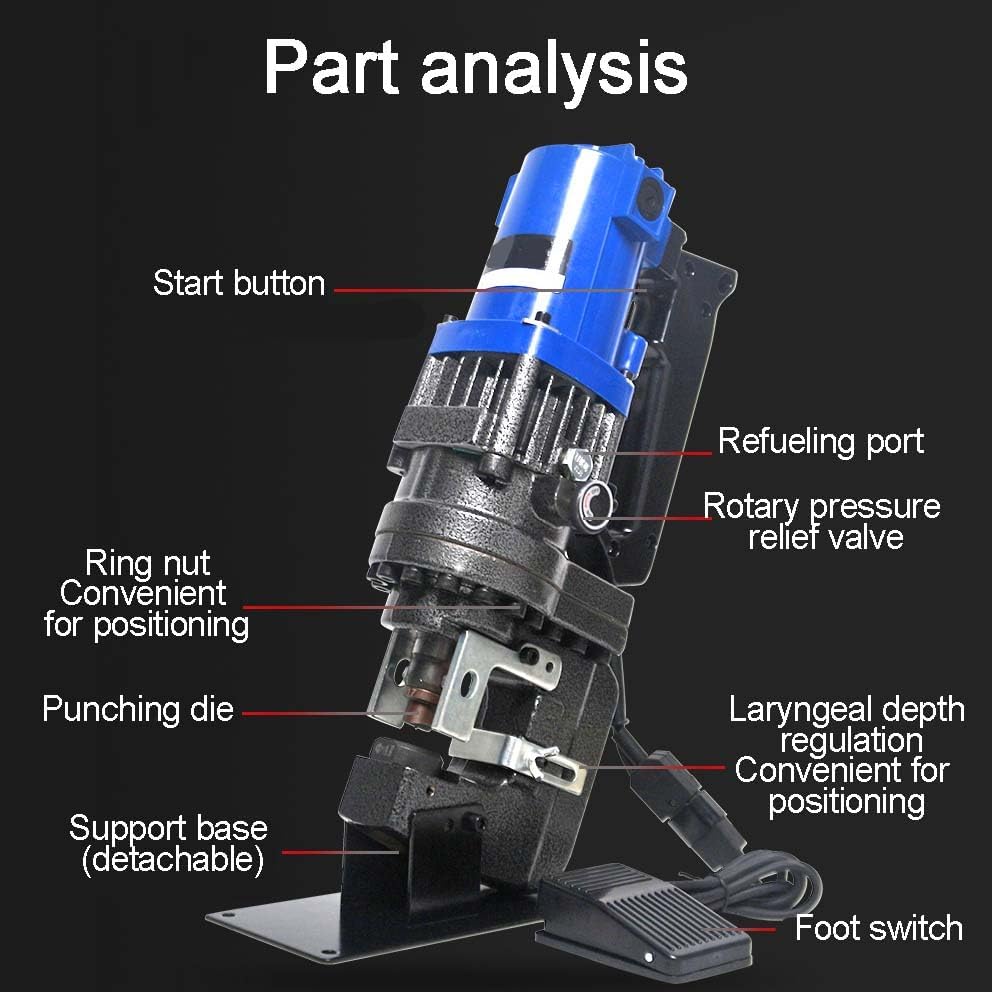

Product Description: The Hydraulic Punching Machine is a compact yet powerful tool designed for professionals working with angle iron and metal plates. Its upgraded copper motor and 13-ton hydraulic system provide reliable force for quick, clean holes. The adjustable throat depth and secure circlip nut design ensure accurate placement and safe operation, making it ideal for electrical conduit, HVAC, and structural framing tasks. Technical Specifications: Power: 110~220V Rated Power: 1300W Maximum Force: 13 Tons Throat Depth: 40mm Material Thickness: Steel/Iron Plate 3-6mm Compatible Profiles: Angle Iron 4# - 6.3# Standard Dies: Φ6.5, Φ9, Φ13, Φ17, Φ20.5 mm Machine Length: ~38 cm Package Includes: 1x Punching Machine 5x Dies (6.5/9/13/17/20.5mm) 1x Foot Pedal 3x Hex Wrenches 1x Standard Wrench 1x Bottle Hydraulic Oil,Spare Screws Precautions: 1.Material and Thickness Limit: Do not exceed punching 6mm thickness for steel/iron plates or 6.3# for angle iron. Exceeding these limits will damage the dies and hydraulic system. 2.Regular Oil Check: Monitor the hydraulic oil level via the convenient oil port and refill as needed to maintain optimal performance and prevent pump damage. 3.Secure Workpiece & Proper Alignment: Always clamp the workpiece firmly. Ensure the die is correctly aligned with the punching head to prevent uneven force distribution and potential tool breakage.

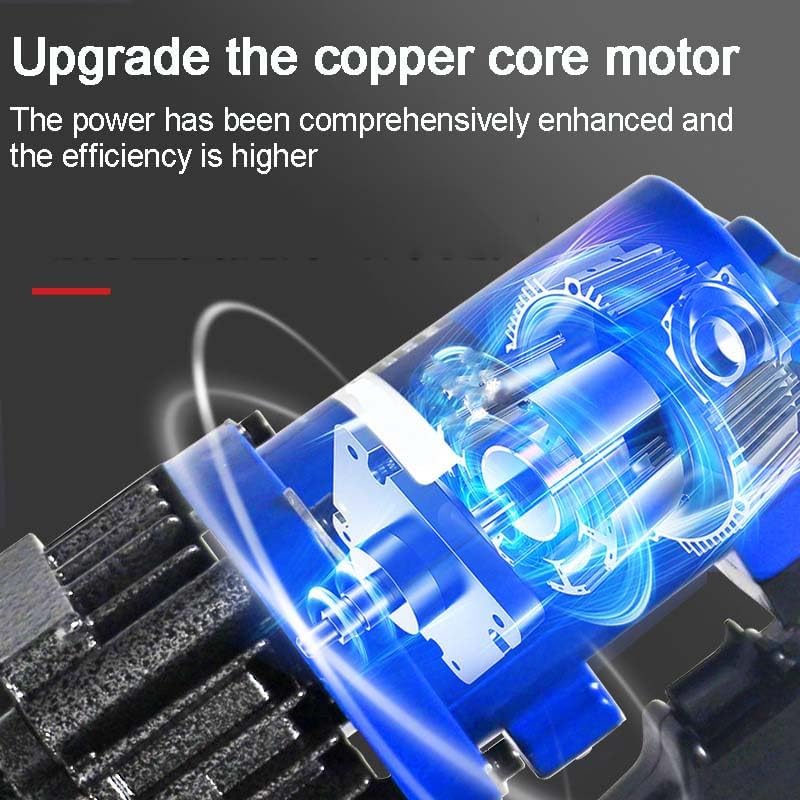

• 【13-Ton Punching Force】Powerful 1300W copper-core motor delivers strong performance, easily punching through 3-6mm steel plates and 4#-6.3# angle iron for construction and metalworking projects.
• 【5 Hardened Steel Dies】Includes 6.5mm, 9mm, 13mm, 17mm, and 20.5mm Cr12 alloy steel dies, each capable of over 5000 punches. Produces clean, precise holes for bolts and fittings.

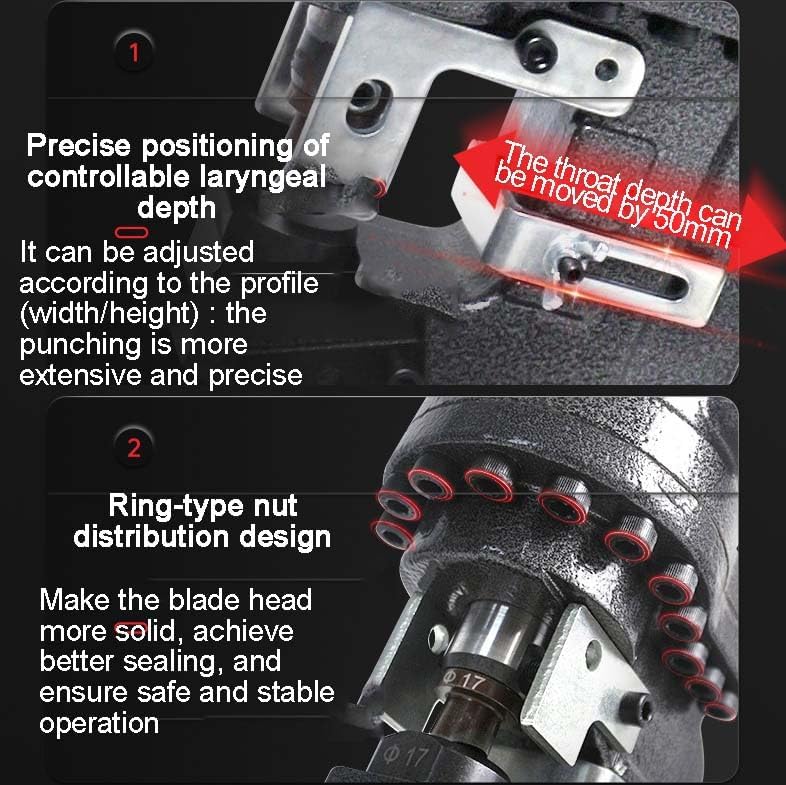

• 【Adjustable 40mm Throat Depth】Allows for precise positioning on various materials and profiles. The cast iron C-head ensures long-term durability and stability under heavy use.

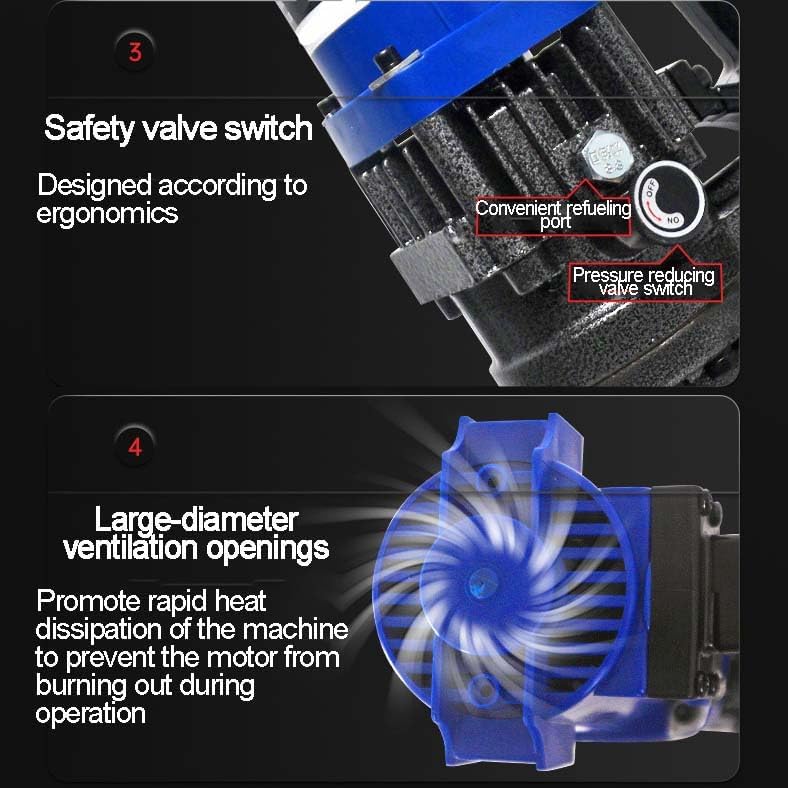

• 【Enhanced Safety Features】Features a rotary pressure relief valve for safe troubleshooting and a large ventilation port for rapid heat dissipation, preventing motor burnout.
• 【Complete Ready-to-Use Kit】Includes a foot pedal for hands-free operation, 3 hex wrenches, a standard wrench, hydraulic oil, and spare screws. Packed in a durable plastic case for organization and portability.
