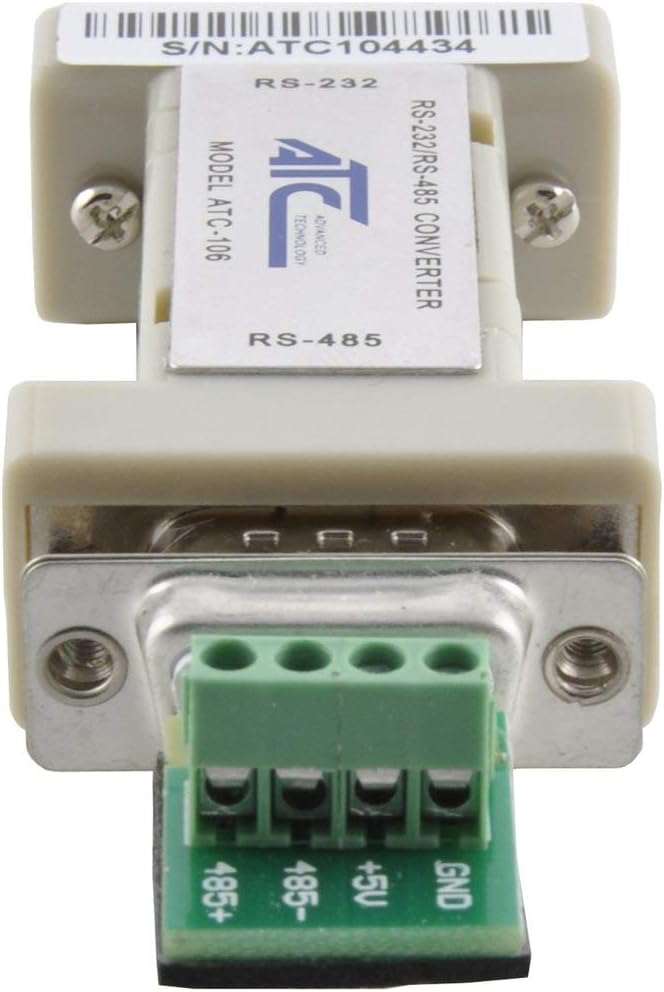

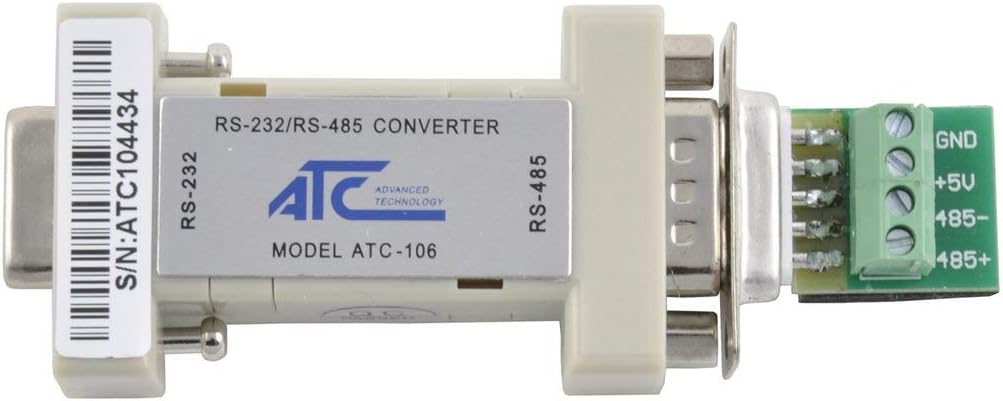

GRIDCONNECT ATC-106 RS232 to RS485 DB9 Converter Non-Isolated
Product details
| Management number | 221090139 | Release Date | 2026/05/03 | List Price | US$9.34 | Model Number | 221090139 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
The ATC-106 converts a DB9 RS232 female connection to a DB9/4 position terminal block RS485 half duplex connection. The ATC-106 is non-isolated and derives power from the RS232 TX/RX signals. The GC-ATC-106 can go up to 115K baud. The GC-ATC-106NH can go up to 460K.
- BAUD RATE up to 115 K. DIMENSIONS88 x 33 x 17 mm. MPN ATC-106
- PRODUCT POWER SUPPLY - Self powered using TX,RX,RTS,CTS RS232 signals and can be powered using +5VDC/40mA if RS232 is not strong enough
- SERIAL INTERFACES - RS232: DB9 Female, RS485: DB9 Male / 4 position terminal block
- SERIAL TYPES - RS232, RS485 TRANSMISSION DISTANCE: 0-1200 m @ 24 AWG
- TEMPERATURE RANGE - Operating: -0°C to +50°C (32ºF to 122ºF). Humidity: 5% to 95%
| UPC | 608802341545 |
|---|---|
| Brand | GRIDCONNECT |
| Color | black |
| Unit Count | 1.0 Count |
| Manufacturer | GRIDCONNECT |
| Model Number | ATC-106 |
| Input Voltage | 5 Volts (DC) |
| Connector Type | Serial Adapter |
| Number of Ports | 2 |
| Power Plug Type | No Plug |
| Package Quantity | 1 |
| Compatible Devices | PC, Laptop |
| Smart Home Compatibility | Not Smart Home Compatible |
