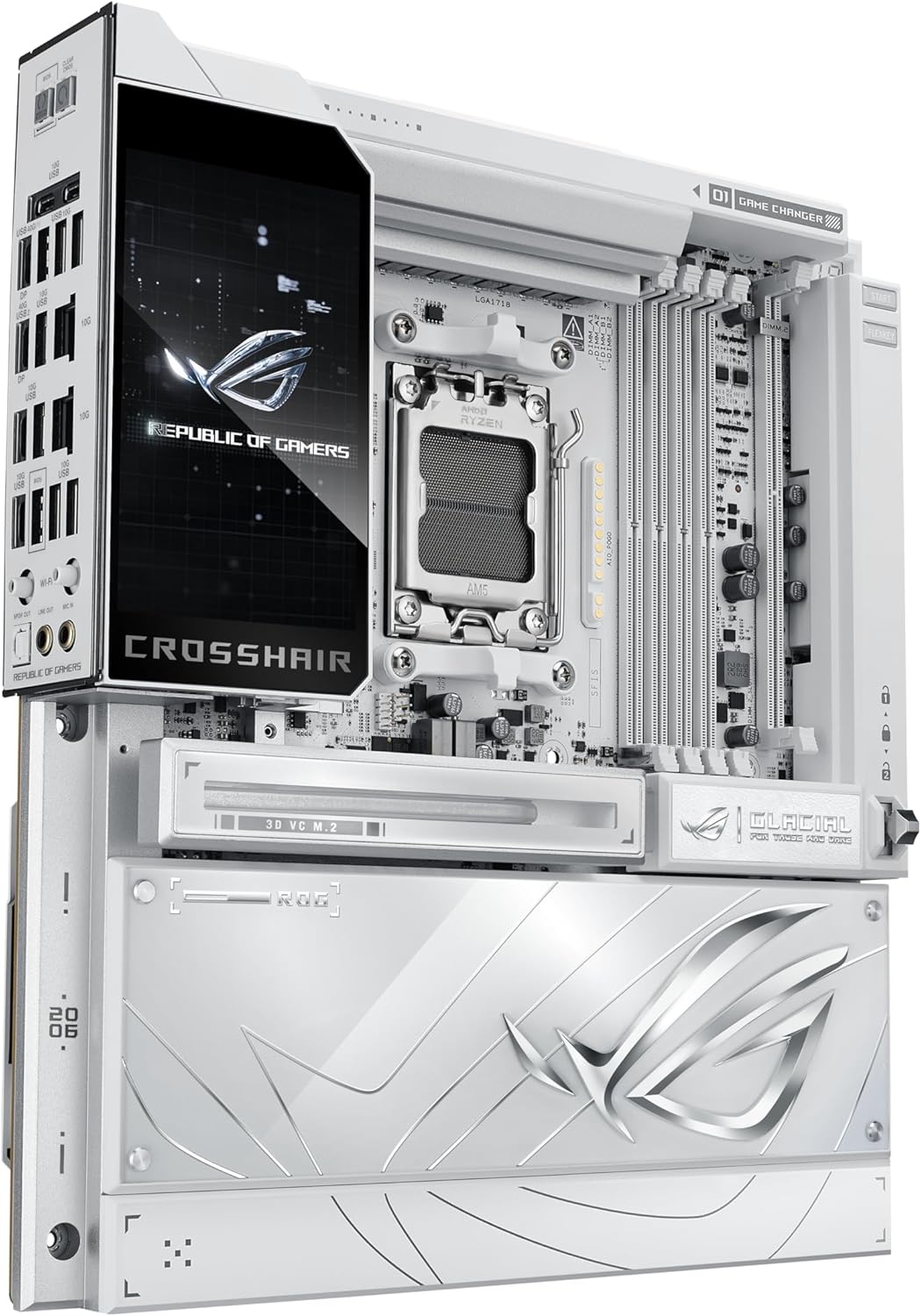

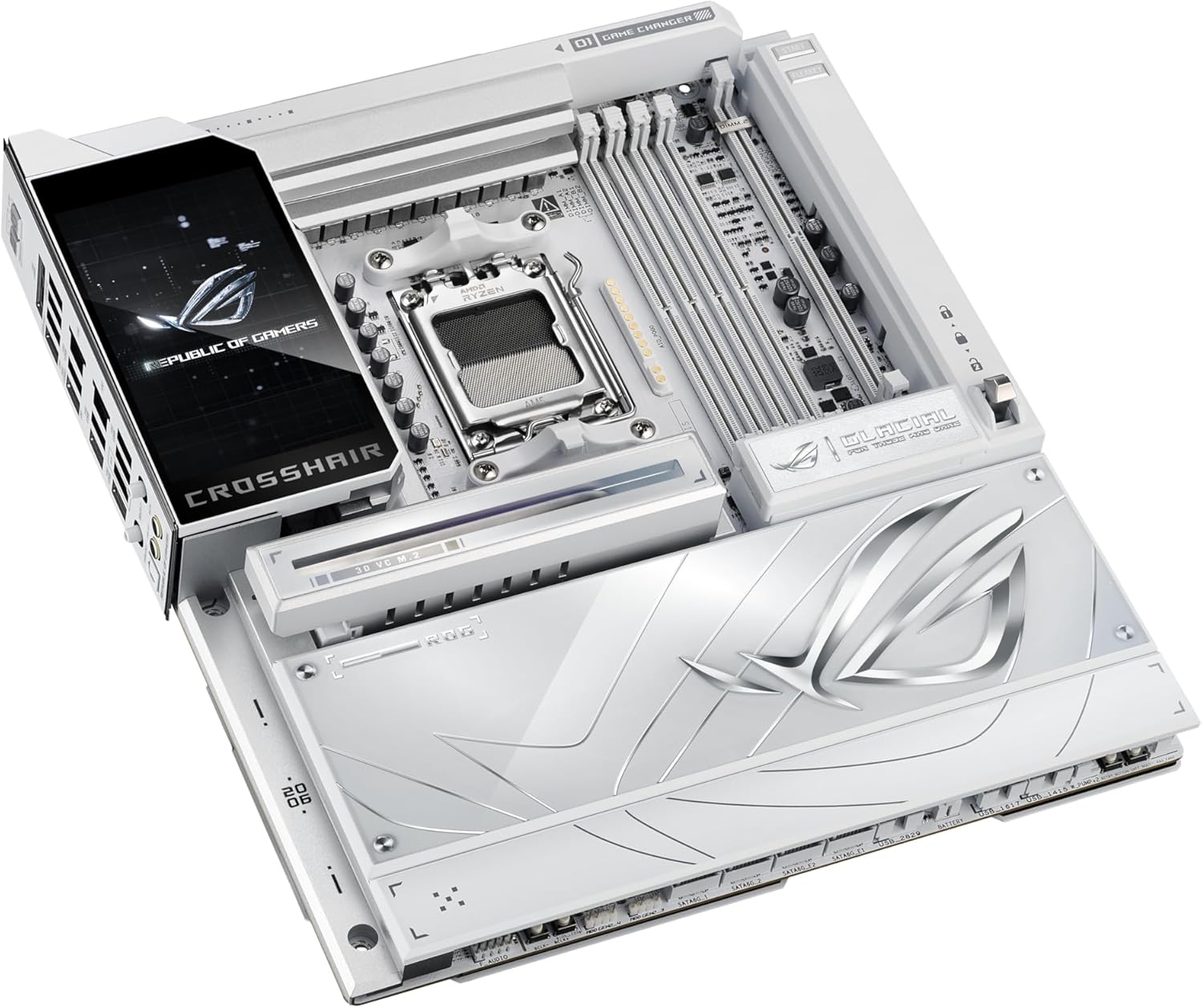

ASUS ROG Crosshair X870E Glacial, AMD E-ATX Motherboard, 24+2+2 Power Stages, DDR5 Slots, Two PCIe® 5.0 x16 SafeSlots, Seven M.2 Slots, Dual Realtek 10G Ethernet, AI Cache Boost, Full -Color 5” LCD
Product details
| Management number | 216133217 | Release Date | 2026/04/19 | List Price | US$480.00 | Model Number | 216133217 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
The ASUS ROG Crosshair X870E Glacial is a premium AMD E-ATX motherboard featuring 24+2+2 power stages, DDR5 memory, two PCIe 5.0 x16 SafeSlots, seven M.2 slots, dual Realtek 10G Ethernet, AI Cache Boost, and a full-color 5” LCD for system monitoring, with robust cooling, advanced connectivity, and flagship ROG design aesthetics
- Ready for Advanced AI PCs: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
- AMD AM5 Socket: Ready for AMD Ryzen 9000, 8000 and 7000 Series Desktop Processors. Renowned Software: BIOS 64 MB, ASUS DriverHub, Dolby Atmos, exclusive 1-year Internet Security subscription, TurboV Core, GlideX, HWiNFO and bundled 1-year AIDA64 Extreme subscription, Integrated WiFi Driver Support

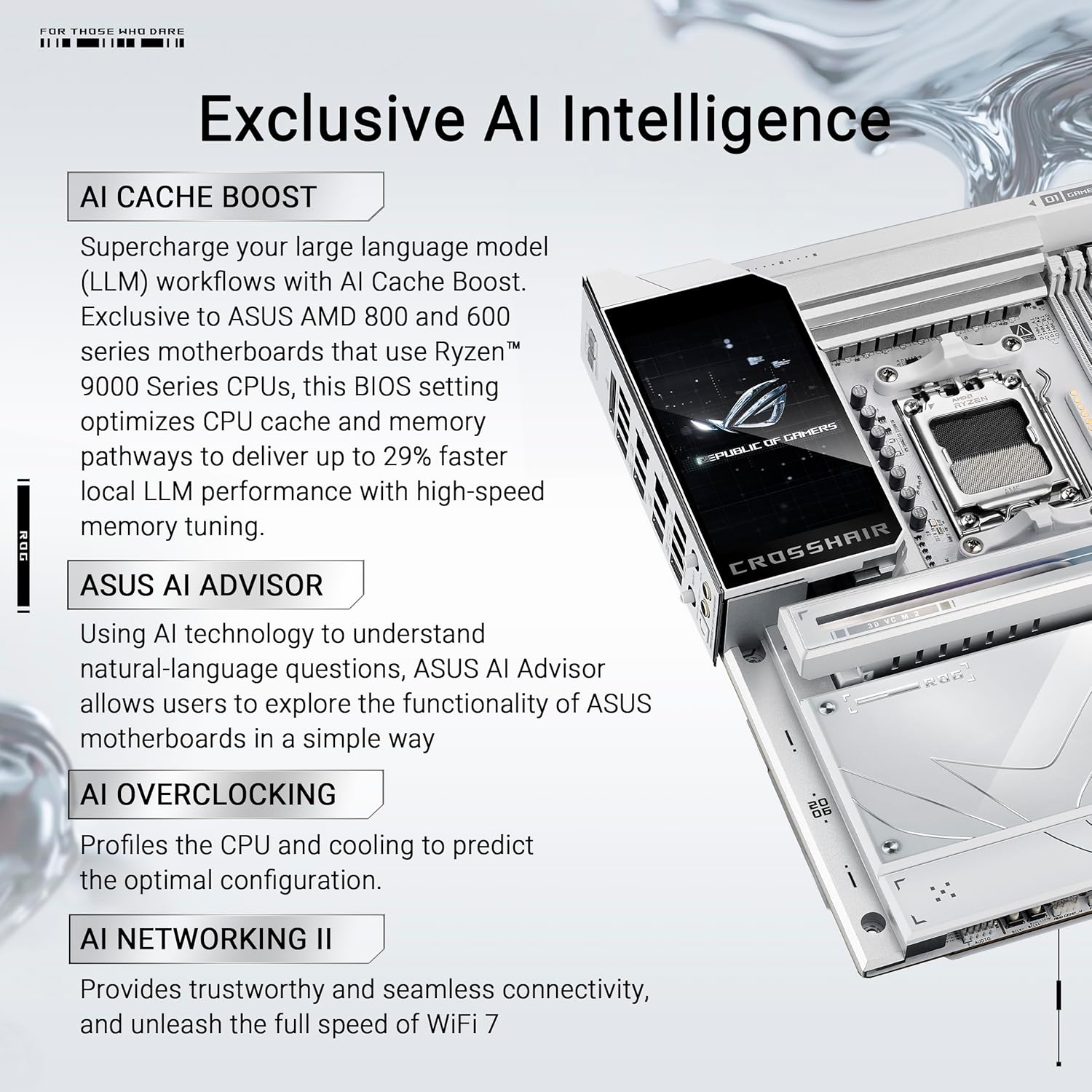

- Intelligent Control: ASUS-exclusive AI Cache Boost, ASUS AI Advisor, AI Overclocking, AI Cooling II, AI Networking II and AEMP to simplify setup and improve performance
- ROG Overclocking Technologies: Dynamic OC Switcher, Core Flex, Asynchronous Clock and PBO Enhancement. Unmatched Personalization: Full Color 5” LCD Screen, two Gen 2 ARGB headers, and a 6-pin Gen 2 ARGB header to support two Gen 2 ARGB headers, all configurable with ASUS-exclusive Aura Sync RGB lighting

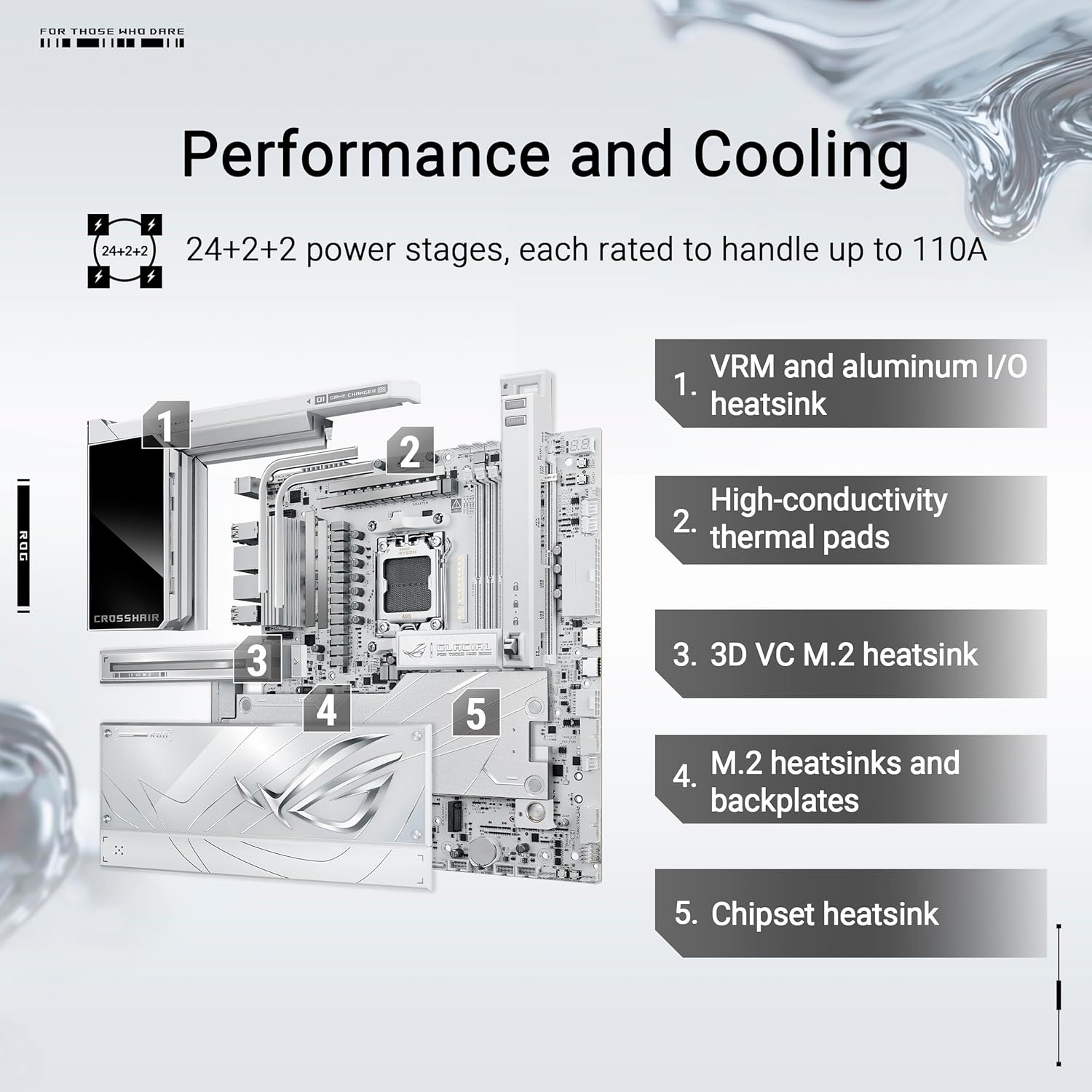

- Robust Power Solution: 24(110A)+2(110A)+2 power stages with ProCool II power connectors, MicroFine alloy chokes and premium metallic capacitors
- Optimized Thermal Design: 3D VC M.2 heatsink for one PCIe 5.0 M.2 slot, Massive heatsinks integrated with the I/O cover, joined by two L-shaped heatpipes and connected to the power stages with high-conductivity thermal pads, ROG Memory Q-Fan
- Latest M.2 Support: Two onboard PCIe 5.0 and one onboard PCIe 4.0 M.2 slots plus two PCIe 5.0 M.2 slots via ROG Hyper M.2 card and two PCIe 4.0 M.2 slots via ROG Q-DIMM.2, all with substantial cooling solutions
- Abundant Connectivity: Dual USB4 Type-C ports, two USB 20Gbps Type-C front-panel connectors (one with Quick Charge 4+ up to 60W and USB Wattage Watcher), twelve additional USB 10Gbps ports, 3 x USB 2.0 headers, two PCIe 5.0 x16 SafeSlots
- High-Performance Networking: Dual Realtek 10G Ethernet, On-board Wi-Fi 7 (802.11be) with ASUS WiFi Q-Antenna. Immersive Audio: ROG SupremeFX ALC4082 codec, with ESS ES9219 Quad DAC for up to 32-Bit/384 kHz playback
- DIY Friendly Design: AIO Q-Connector, PCIe Slot Q-Release Switch, M.2 Q-Release, New M.2 Q-Latch, M.2 Q-Slide, Q-Antenna, BIOS Q-Dashboard, Q-Code, Q-LED, FlexKey button, Start button, BIOS FlashBack button, Clear CMOS button and pre-mounted I/O shield, ROG Memory Q-Fan
| UPC | 199291392045 |
|---|---|
| Brand | ASUS |
| Platform | Windows 11 |
| CPU Model | Ryzen 7 |
| Model Name | ROG CROSSHAIR X870E GLACIAL |
| Unit Count | 1.0 Count |
| Chipset Type | AMD X870E |
| Manufacturer | ASUS |
| Model Number | ROG CROSSHAIR X870E GLACIAL |

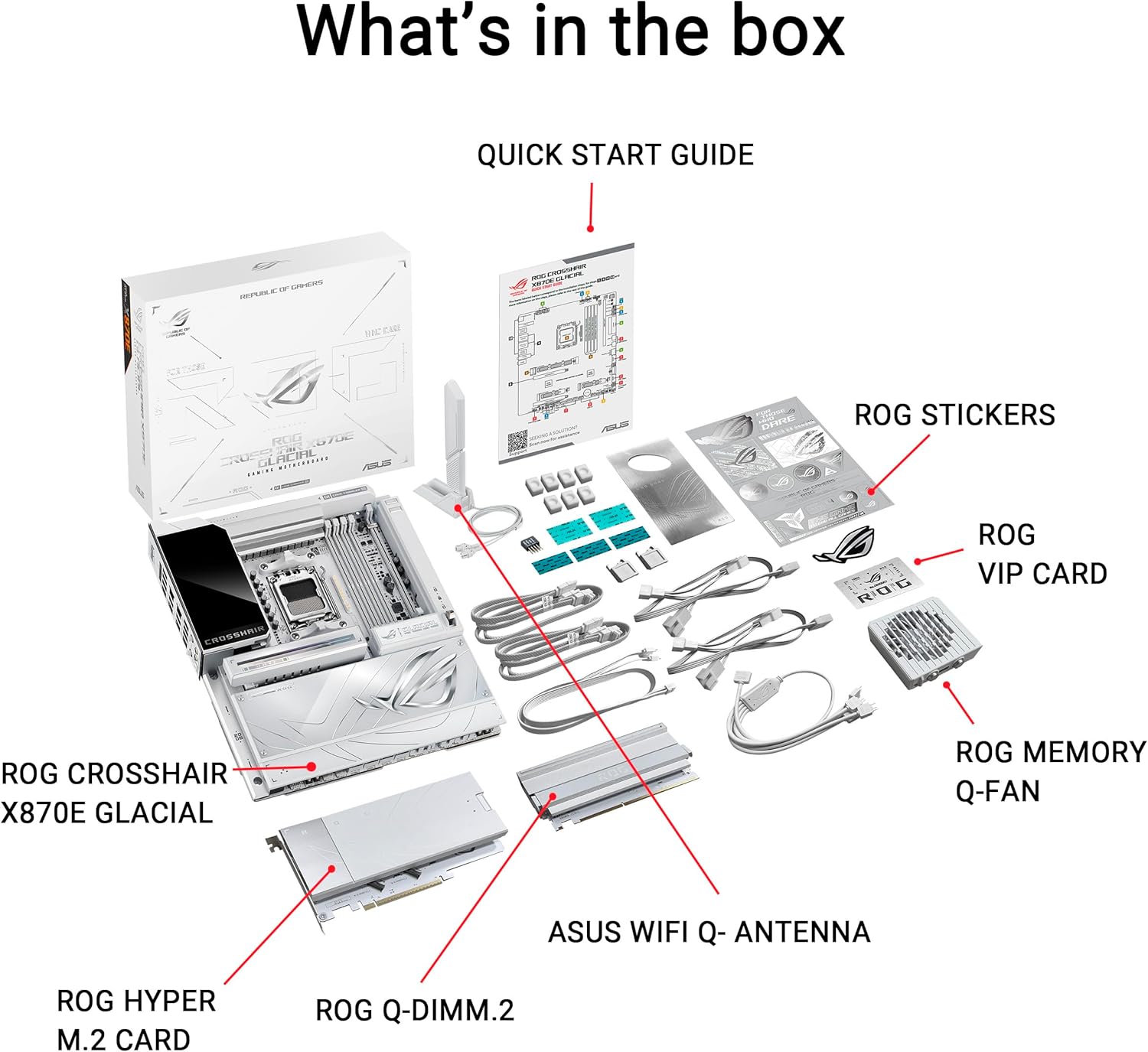

| BuiltIn Media | 1 x ASUS WiFi Q-Antenna, 1 x M.2 Q-Slide package, 1 x M.2 pad package for ROG Q-DIMM.2, 1 x Q-connector, 1 x Quick start guide, 1 x ROG Bottle Opener, 1 x ROG Memory Q-Fan, 1 x ROG VIP card, 1 x ROG logo plate sticker, 1 x ROG stickers, 1 x Thermal pad for M.2 22110, 1x ROG CROSSHAIR X870E GLACIAL Motherboard, 2 x Thermal pad for ROG Q-DIMM.2, 7 x M.2 backplate rubber packages |
| Number of Ports | 36 |
| Total Usb Ports | 26 |
| Processor Socket | Socket AM5 |
| Total PCIe Ports | 4 |
| Total SATA Ports | 4 |
| Compatible Devices | Personal Computer |
| Warranty Description | 3 Years |
| Compatible Processors | AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors* |
| RAM Memory Technology | DDR5 |
| Memory Slots Available | 4 |
| Graphics Card Interface | PCI Express, PCI Express 4.0 |
| Memory Storage Capacity | 256 GB |
| Ram Memory Maximum Size | 256 GB |
| Number of Ethernet Ports | 2 |
| Item Dimensions L x W x H | 12"L x 10.9"W x 1.5"H |
| Main Power Connector Type | 24-Pin |
